Technical Specifications: Libra Speaker system


Item Tower Satellite Center Subwoofer
Speaker Size Tweeter: 1" Tweeter: 1" Tweeter: 1" Tweeter: 1"
Midrange: 5 1/4" --- --- ---
Woofer: 5 1/4" x2pcs Woofer: 5 1/4" Woofer: 5 1/4" x2pcs Subwoofer: 10"
Magnetic shielded YES YES YES NO
Frequency range 65~20KHz 100~20kHz 80~20kHz 20~200Hz
Impedance 6 Ohm 6 Ohm 6 Ohm 6 Ohm
Sensitivity 89dB 87dB 88dB ---
Power handling 80W 40W 60W 150W
CE/UL Approved
Cabinet Curved MDF cabinet
with hand painted
Finishing
Curved MDF cabinet
with hand painted
Finishing
Curved MDF cabinet
with hand painted
Finishing
With hand
painted Finishing
Dimension (HWD) 37.75x7.75x10.25in 11.25x7.5x10.25in 7.5x10.25x18.5in 16.25x14.75x15.25in
Color Lacquered
Black or Silver
Lacquered
Black or Silver
Lacquered
Black or Silver
Lacquered
Black or Silver
Weight 63Lb 17.5Lb 16Lb 40.25Lb

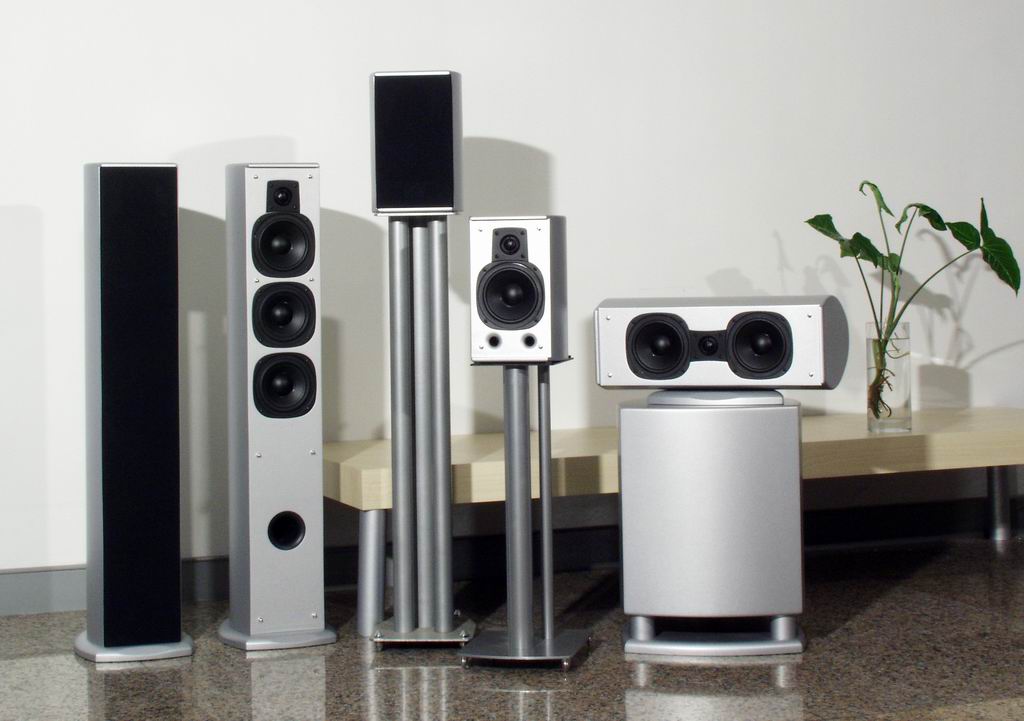

The Libra Series:

Unique styled painted MDF cabinets in Lacquered finishing. Premium styling combined with high quality drivers to deliver a powerful listening experience. This system uses custom designed 5.25” drivers with 1” soft dome tweeters to maintain its sleek profile. The towers are a 4” driver design, while the center channel and satellites use a standard configuration. The system uses a 10” powered subwoofer. (CE and UL approved)
